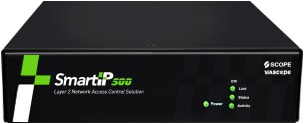

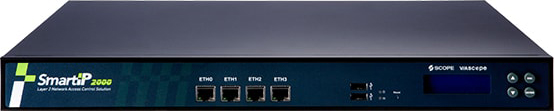

SmartIP 2000 | SmartIP 500 | |
CPU | Intel Core2Duo 2.8Ghz | Cortex-A9 Quad Core 1.4GHz |
OS | Linux | Linux |
Memory | 4GB (2GB X 2) DDR3 RAM | 1GBytes DDR2 Memory |
Flash/HDD | 500GB | 8GBytes T-Flash |
Interface | 4 x RJ-45 (10/100/1000Mbps) Dual USB 2.0 |
1 x RJ-45 (10/100/1000Mbps) 1 x RS-232 (DB-9) Console Port |
Size (mm) | 438(W) x 292(D) x 44(H) mm | 170(W) x 44(H) x 183(D) mm |
Weight | 5.2Kg | 1Kg |
Operating Environment | Temperature : 5℃~40℃, Humidity : 20%~90% | Temperature : 0℃~40℃, Humidity : 0%~90% |
Inout Voltage | AC100V~240V, 50~60Hz | AC100V~240V, 50~60Hz |
Power | 200W | 10W |
Trunk Protocol | IEEE802.1q FlatNetwork & Multi-VLAN Support |
IEEE802.1q FlatNetwork & Multi-VLAN Support |
DHCP Server | Embedded | Embedded |
Database | MariaDB | MariaDB |

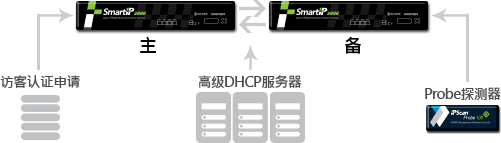

Redundancy Support | Yes | Yes |
